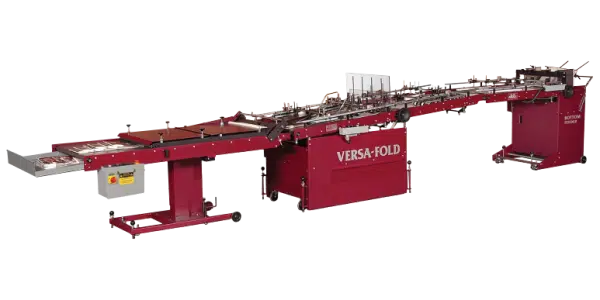

Vantage 720/920 In-Line System

The Vantage Machine is an in-line Folder/Gluer with an impressive production rate (speeds up to 30,000+ cartons per hour). The Vantage line is ideally suited for producing straight-line boxes, room key holders, table tents, sleeves, CD wallets, computer software cartons and presentation folders. An optional kit for producing auto-lock bottom boxes is available.

Through Moll’s module design, you move units in and out, allowing for quicker and easier setups.  For materials requiring the extra glue penetration time and positive control after folding, you will appreciate the Moll Pressure Stacker. With adjustable height intake alignment, top and bottom full width motorized blanket belts, and adjustable pressure control, Moll’s Pressure Stacker will provide the results you expect.

Features

  • Module design to mix and match
  • Friction fed
  • Belt drive
  • Vacuum infeed belts
  • Etched railing for quick change overs
  • Ability to bump-n-turn a sheet

Industries/Consumers served

Food, beverage, cosmetic, POP, pharmaceutical, sports packaging, consumer packaging, home and office packaging, industrial packaging, commercial print, mailing, sample packets, and more!

Specifications

Imperial Metric
Material Cover Stock Paper, Heavy Board Cover Stock Paper, Heavy Board
Paper weight 70lb Cover to 28pt Stocks 140–500 g/m²
Minimum product size (WxL) 2 x 4 inches 50 x 102 mm
Maximum product size (WxL) 26×20“ or 33×20” or 40×20 762x508mm or 914x508mm or 1016×508 mm
Maximum linear speed 425ft/min 130m/min
Power connection 220V, 3PH, 60AMP, 60 HZ 400V, 3PH, 60AMP, 50 HZ
Compressed air connection 90 PSI .7 mPa

Options

  • Double Sided Tape Head
  • Tear Tape Applicator
  • Dual Stream
  • Pre-break kit
  • Trombone delivery attachment
  • Room key card kit
  • Vacuum System
  • Versafold
  • Bolt on register
  • Drop in registration
  • Tip on machine
  • Moll Perf-N-Crease unit
  • Cold Glue System
  • Hot Glue System
  • Ink Jet Equipment
  • Capacity Forming Attachment
